Documentation

Installation and configuration guide for the Product Badges plugin for nopCommerce 4.90.

Installation

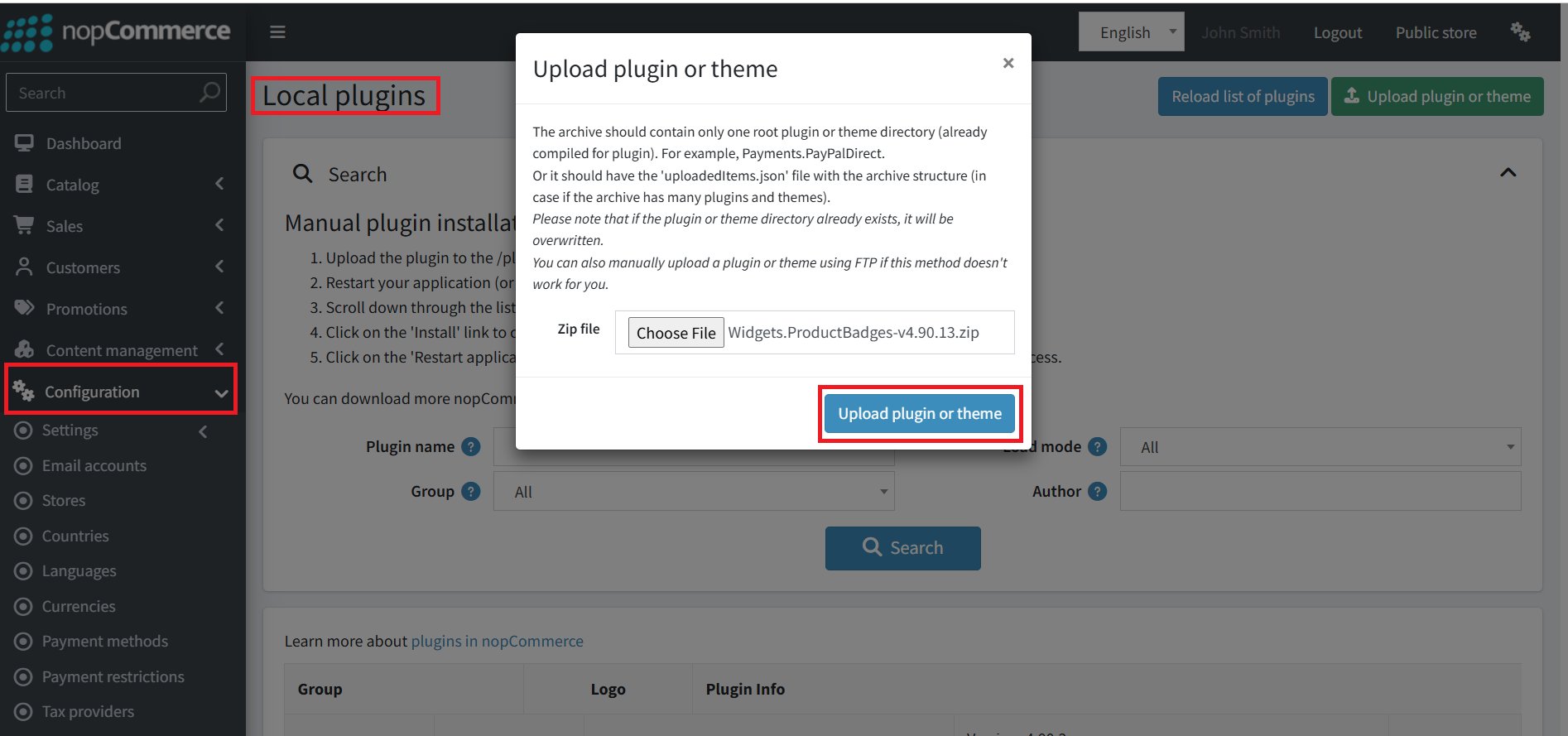

1. Upload the plugin

   In the admin area go to Configuration → Local plugins and press Upload plugin or theme. Choose the Widgets.ProductBadges.zip file.

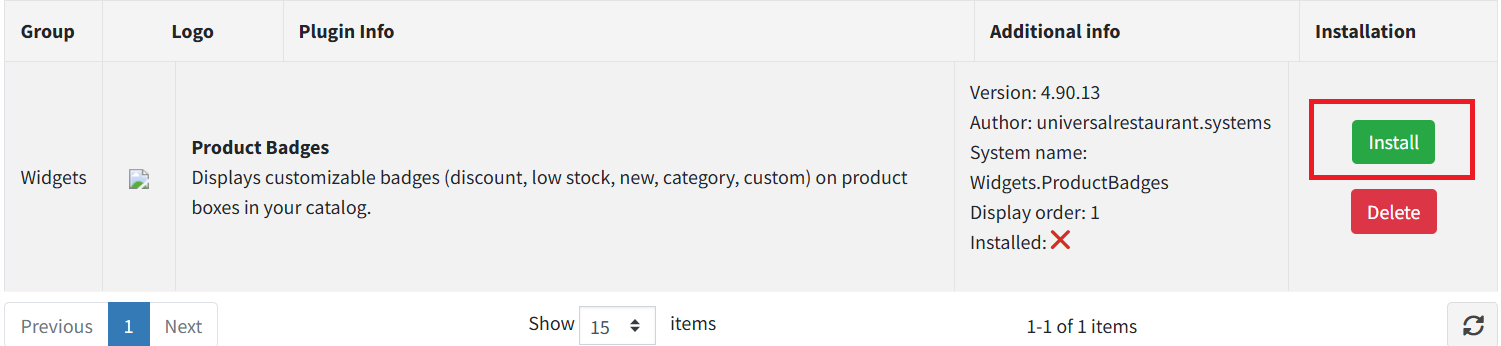

2. Install the plugin

   Find “Product Badges” in the list and press Install. This creates the badge tables, settings and localization resources.

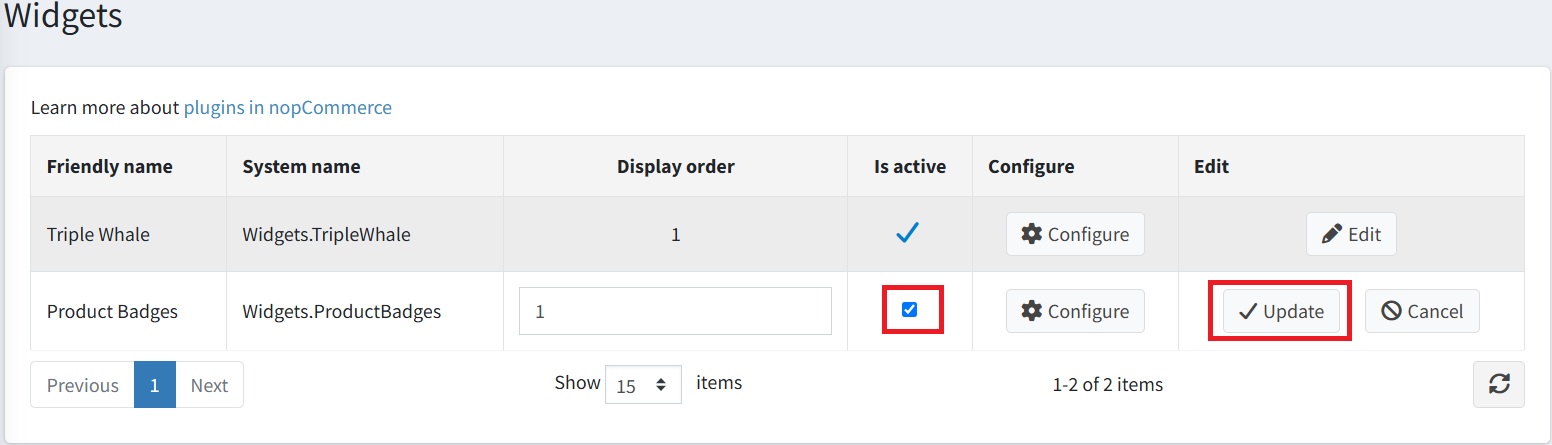

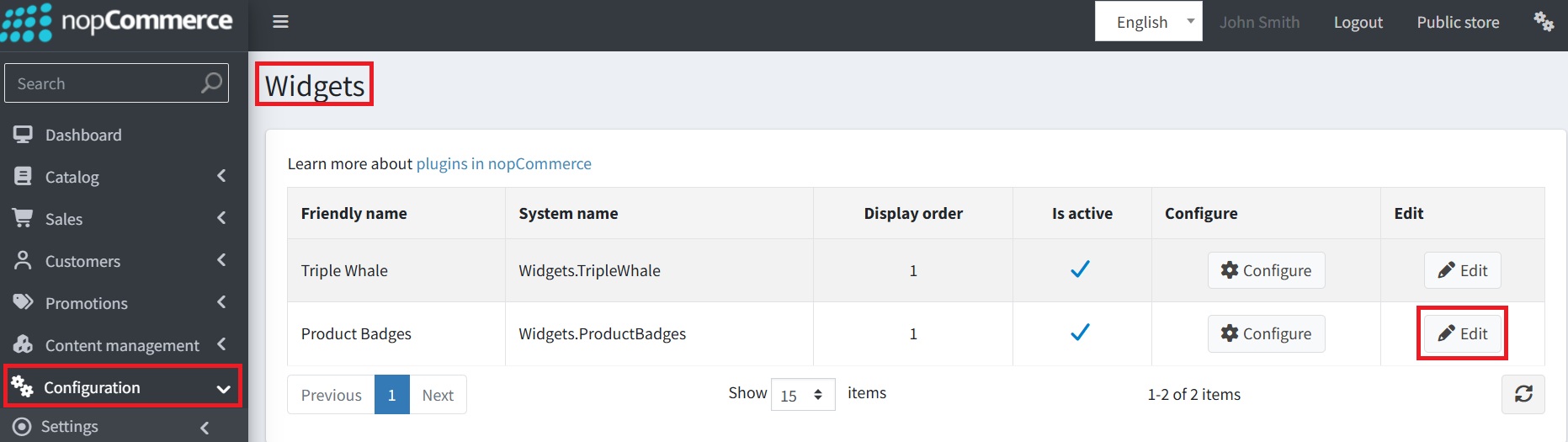

3. Activate the plugin

   Open Configuration → Widgets, find “Product Badges” and make sure it is active.

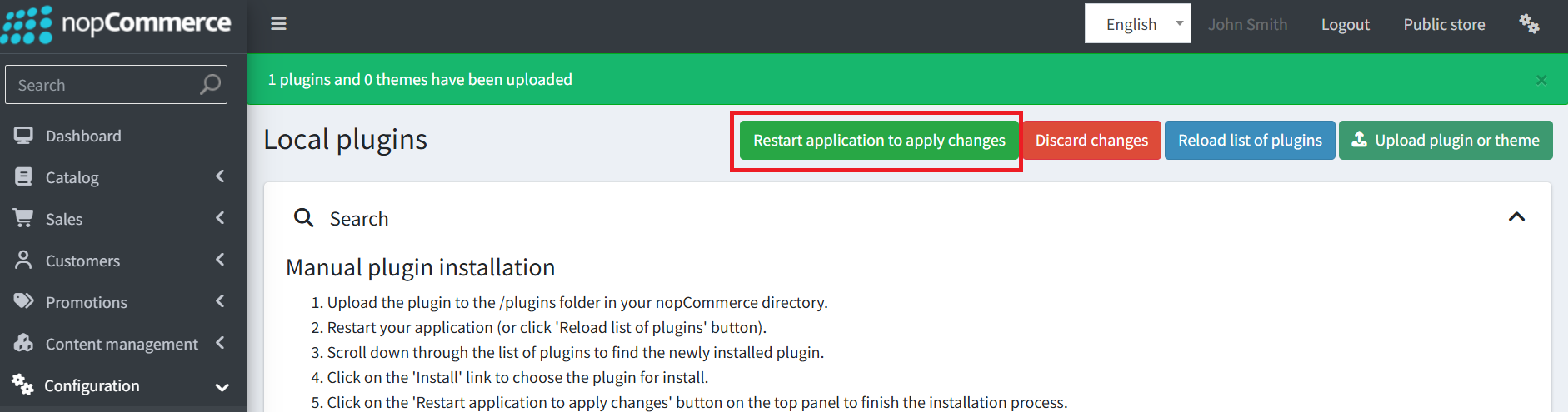

4. Restart the application

   Restart the app once so the plugin loads correctly.



5. Create your first badge

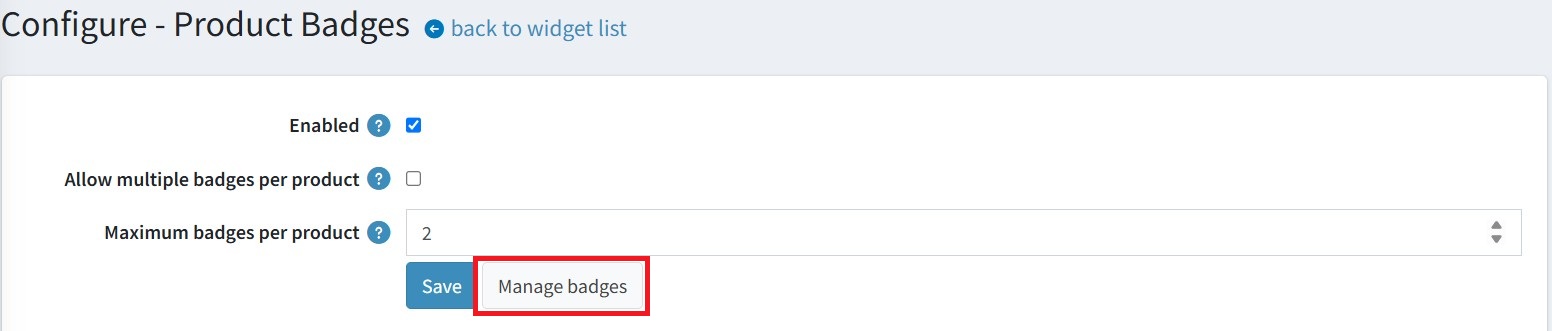

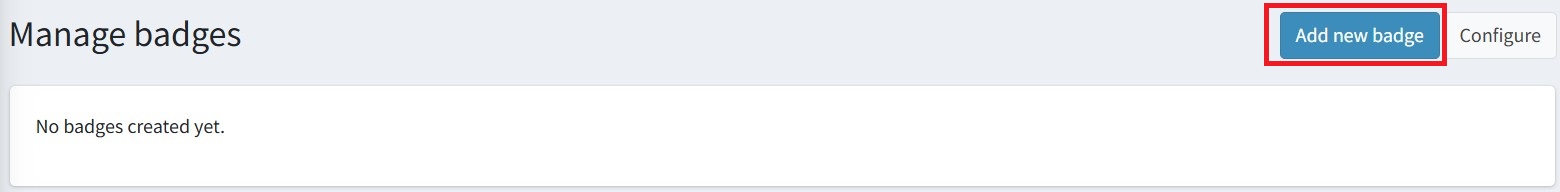

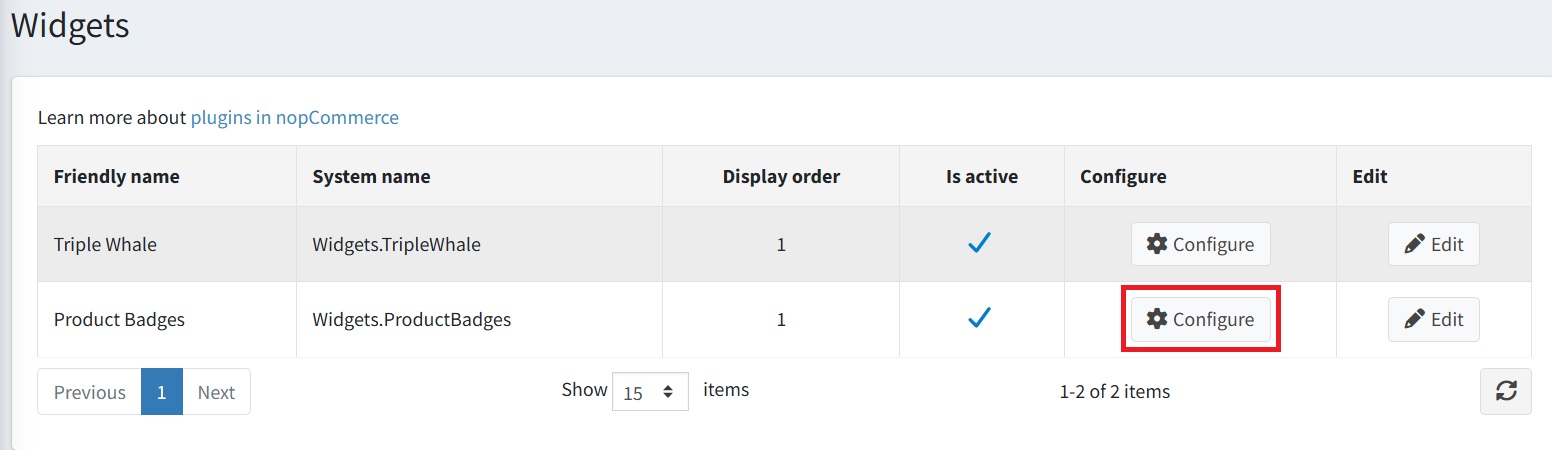

   Go to Configuration → Widgets and press Configure next to “Product Badges”, then press Manage badges → Add new badge.





Badge types

Each badge has a type that determines how and when it appears on a product.

Type	How it's applied
Discount (-X%)	Automatic. Appears when the product has an active nopCommerce discount applied (Promotions → Discounts, assigned to products). The label shows the computed percentage (e.g. -30%).
Low stock	Automatic. Appears when the product's stock quantity is ≤ the threshold you set. The label always shows “Only X left”.
New product	Automatic. Appears when the product has “Mark as new” ticked on the product edit page.
Category	Automatic. Appears on all products in the selected categories.
Manufacturer (brand)	Automatic. Appears on all products of the selected manufacturers.
Custom (manual)	Manual. Assign it per product (product edit → “Product Badges” tab) or in bulk (product list → “Assign badge”).

Setting up each badge type

Create a badge from Configuration → Widgets → Product Badges → Manage badges → Add new badge, pick the type, then follow the steps below. The form shows the fields for the selected type automatically. Each badge type also needs a small setup step in the store itself.

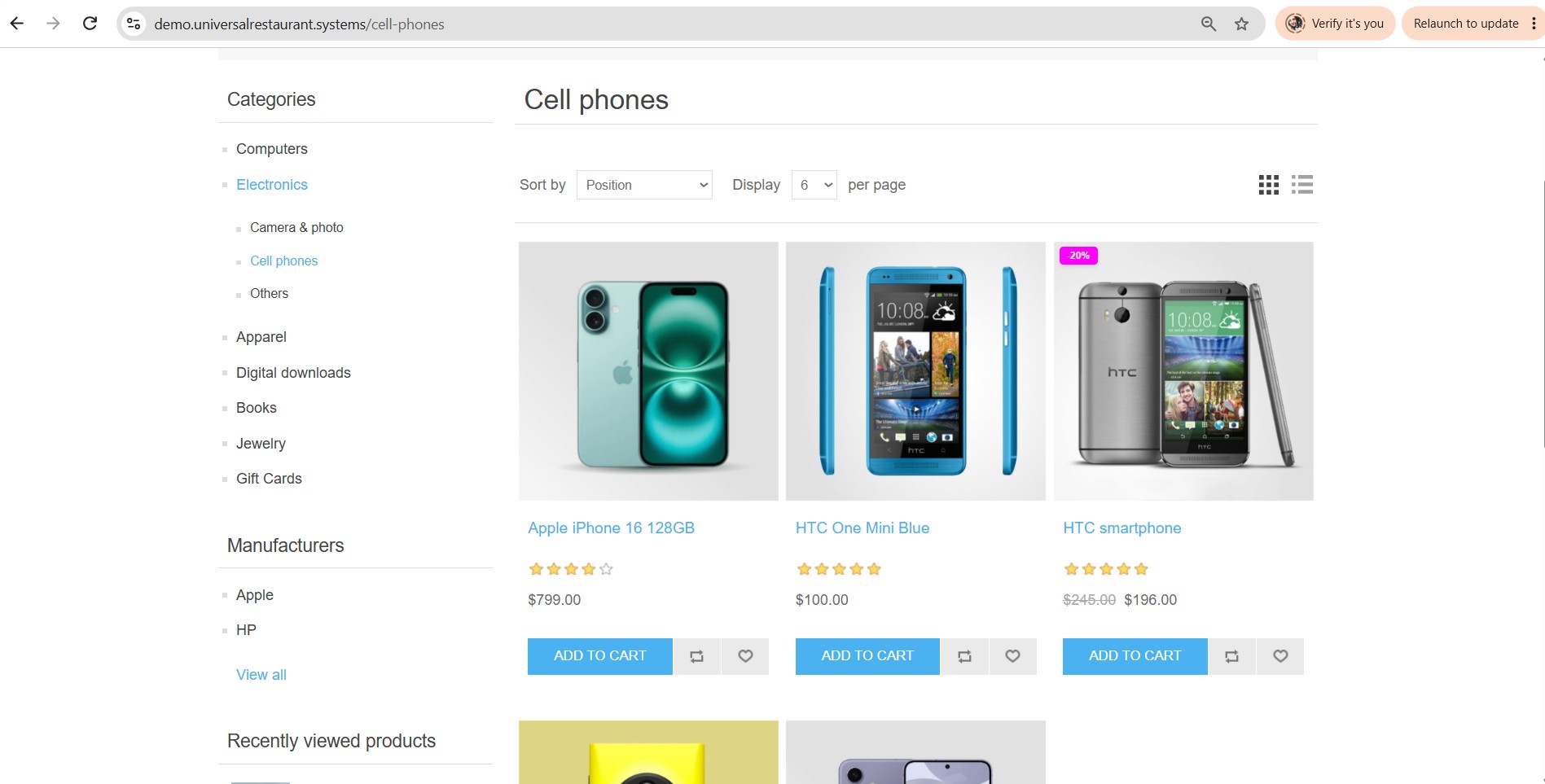

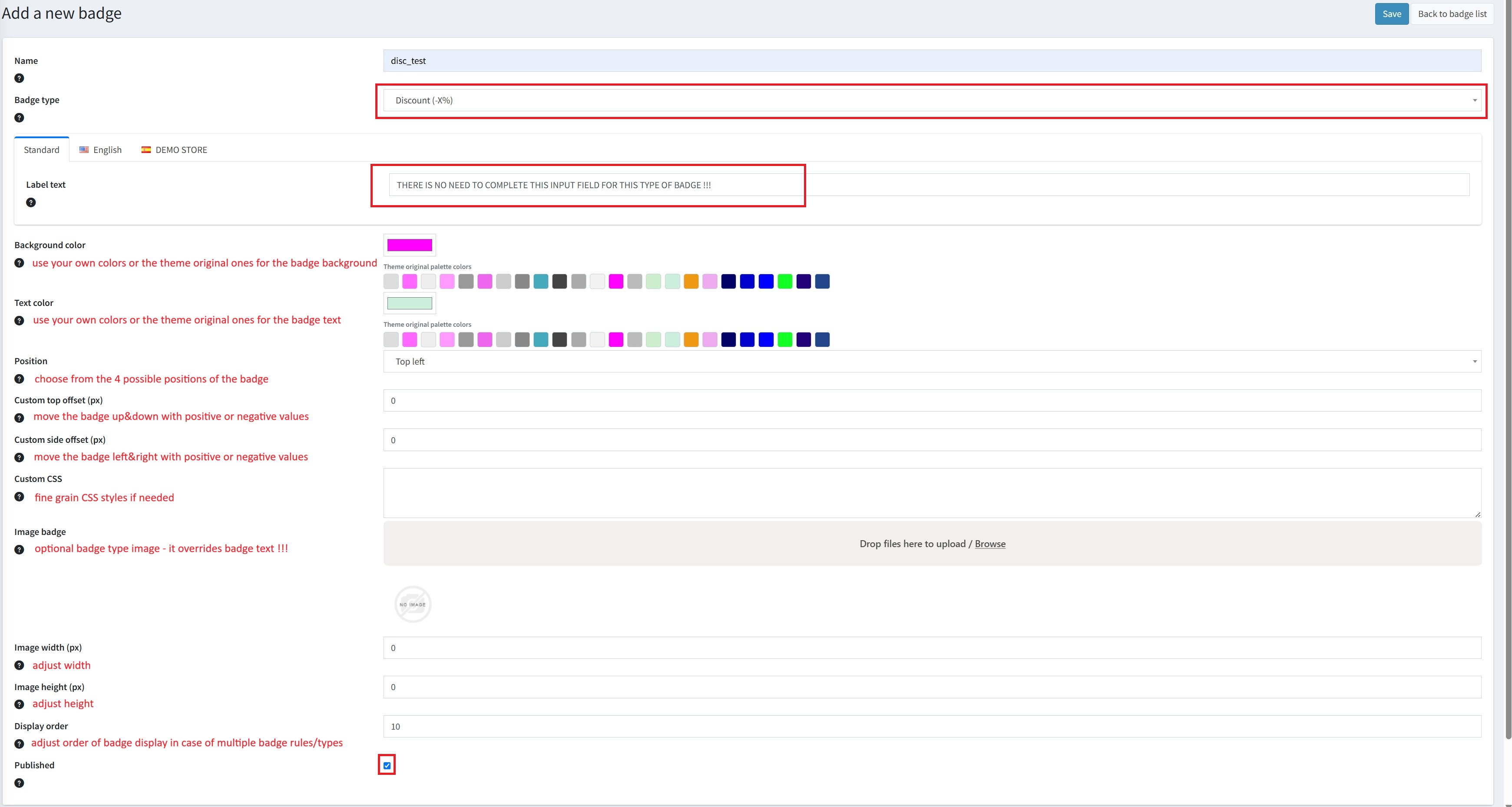

Discount (-X%)

Automatic. The badge appears on products that have an active nopCommerce discount applied. The text (-X%) is computed automatically from the discount percentage.

1. Create the discount

   Go to Promotions → Discounts → Add new, choose Use percentage and set the Discount percentage. Leave Requires coupon code unchecked and keep it active.

2. Apply it to products

   Scroll down to Applied to products, add your product(s) and Save.

3. Attach it on the product

   Go to Catalog → Products, open your product, find the Discounts section, apply the discount and Save.

4. Create the badge

   Add a badge of type Discount and publish it.

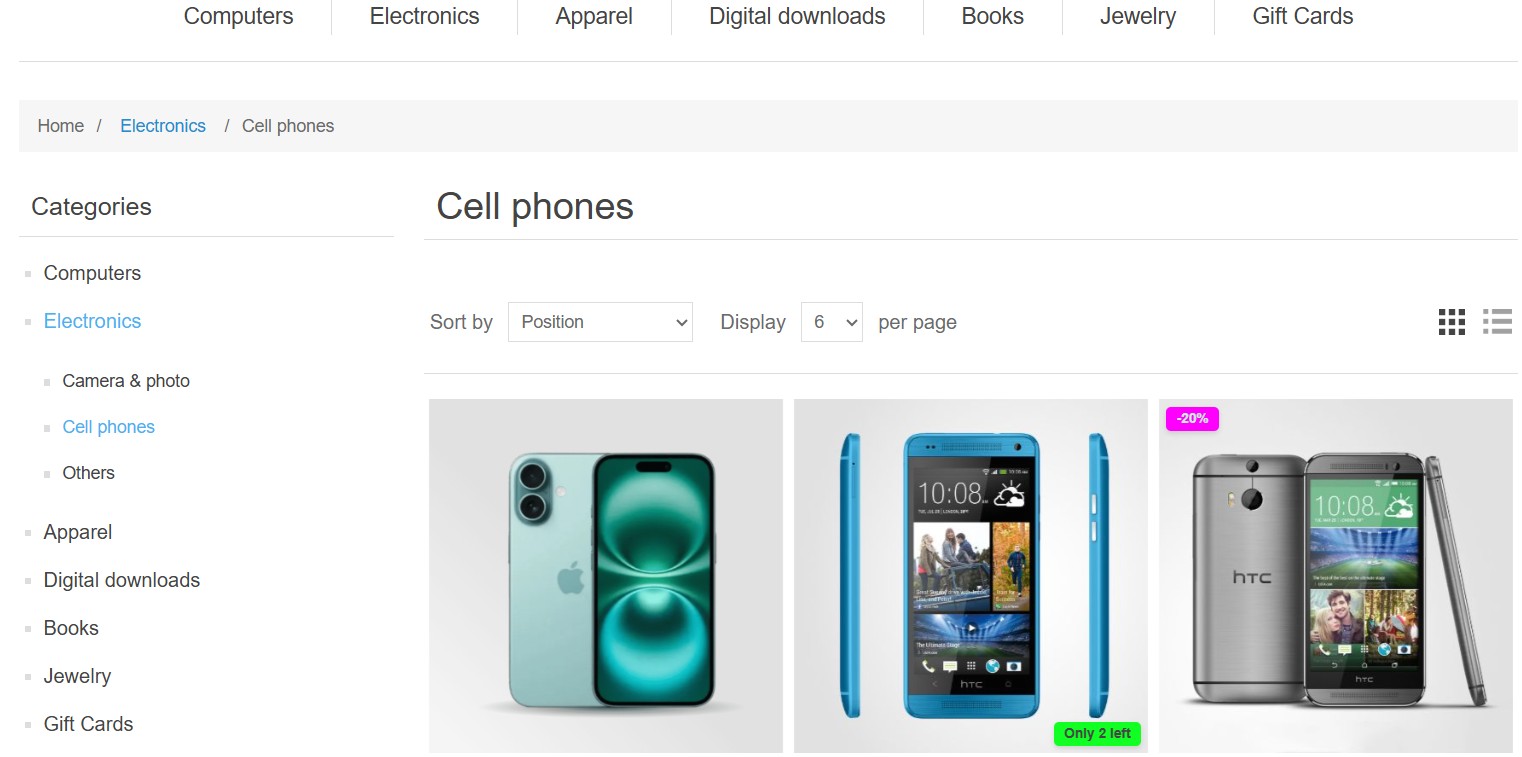

Low stock

Automatic. The badge appears when a product's stock quantity is less than or equal to the Low stock threshold. The text (Only X left) is generated automatically.

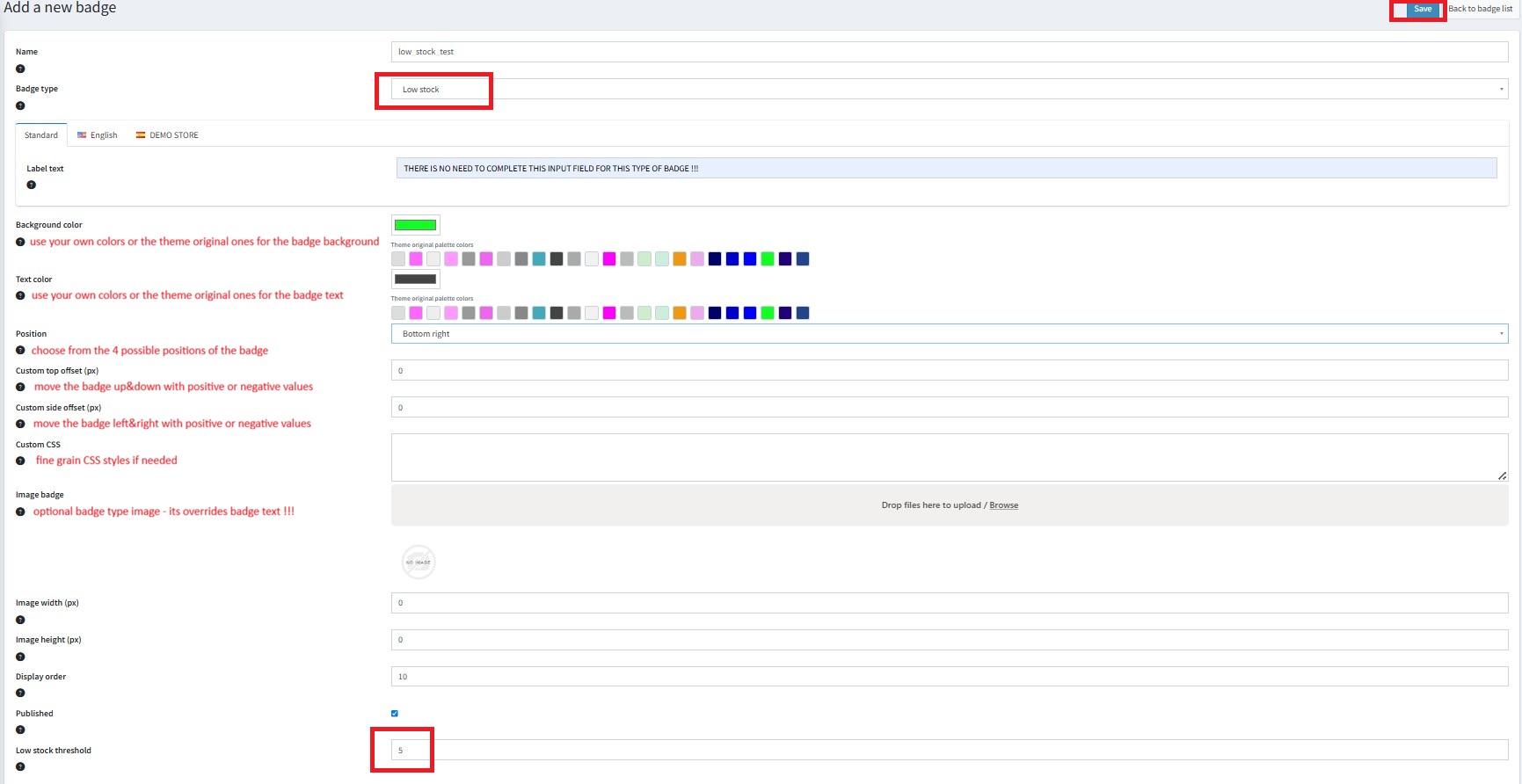

1. Set the badge threshold

   In the badge's Low stock threshold field, enter the stock number that triggers the badge.

2. Set the product stock

   Edit the product, set its Stock quantity to a value equal to or below that threshold, then Save.

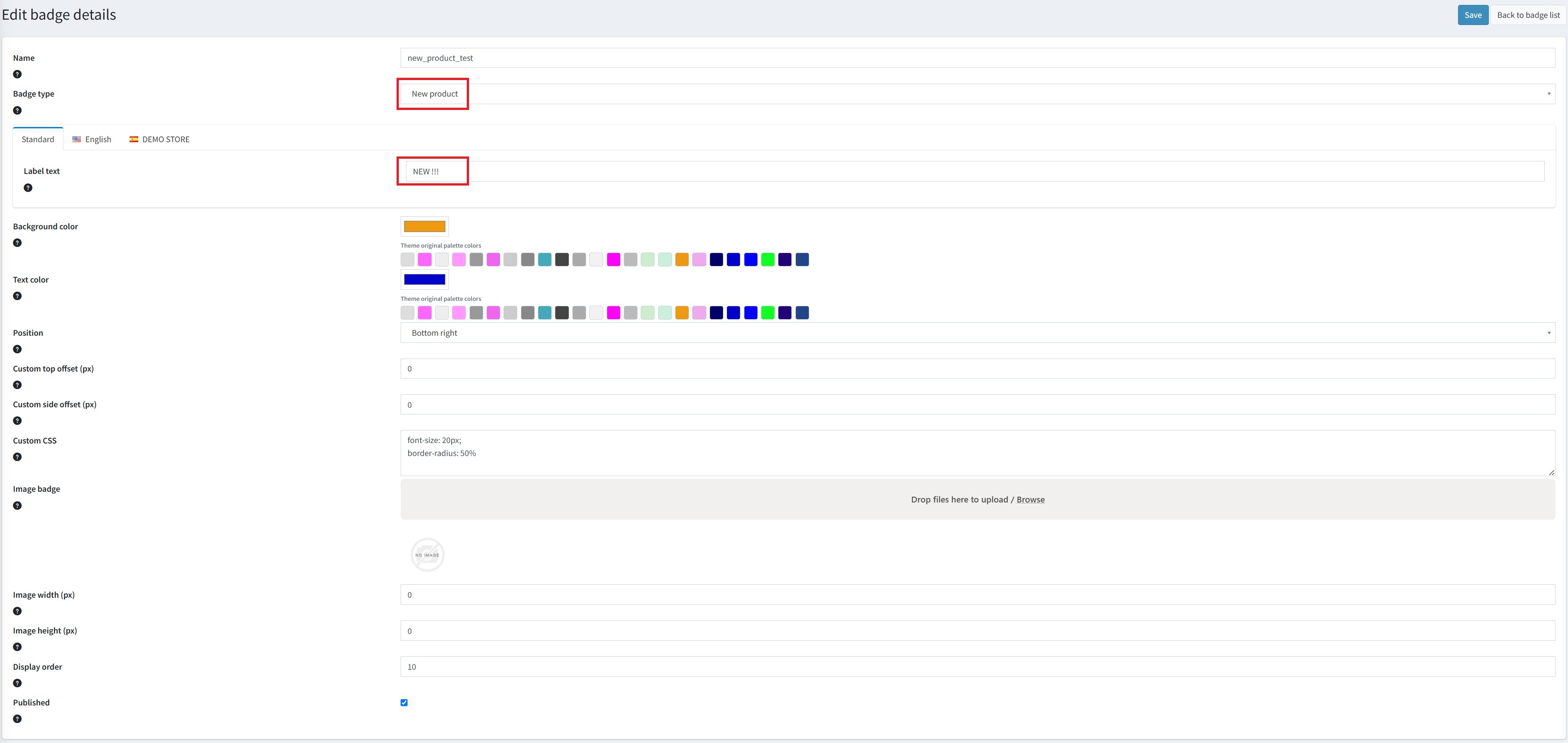

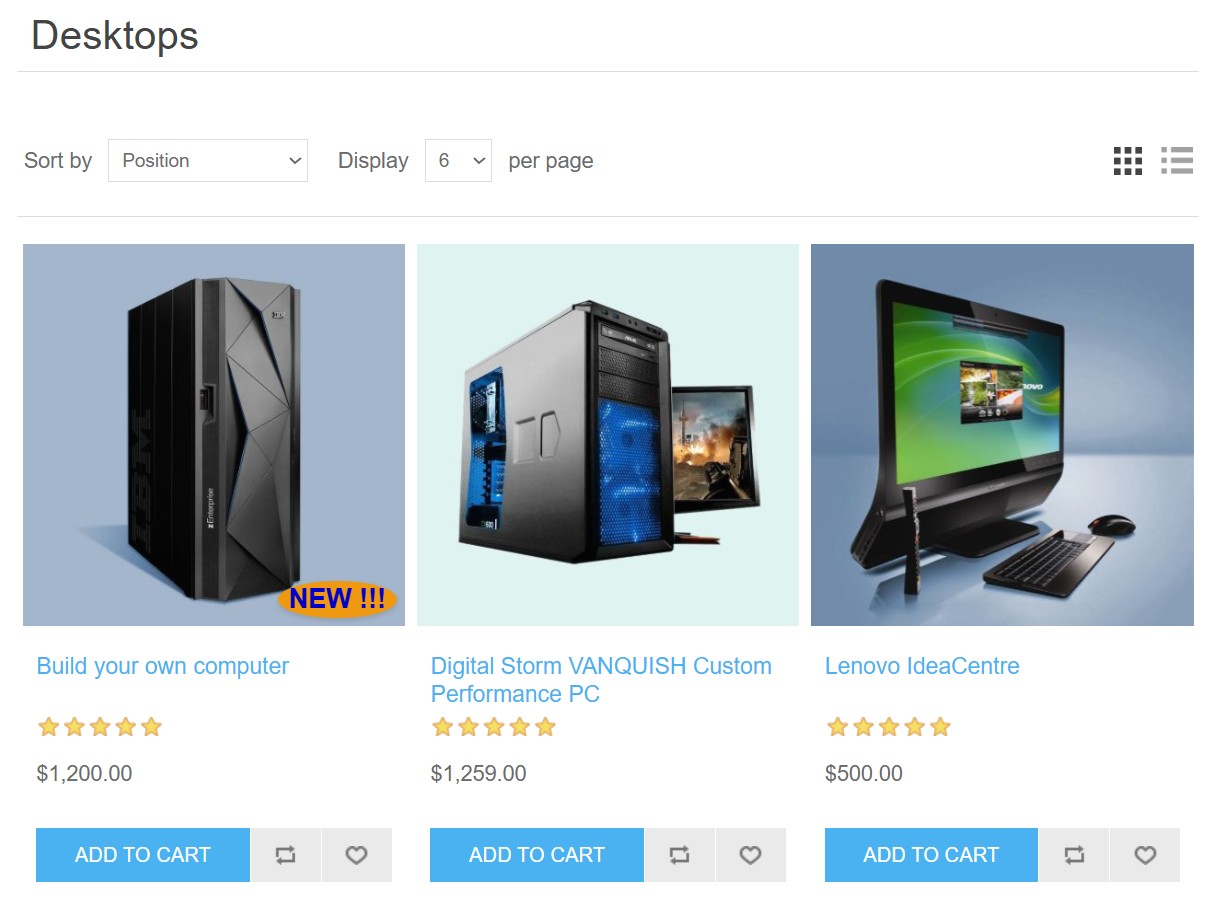

New product

Automatic. The badge appears on products with “Mark as new” ticked.

1. Create the badge

   Add a badge of type New product and publish it.

2. Mark the product as new

   Edit the product, tick Mark as new, optionally set the start/end dates, then Save.

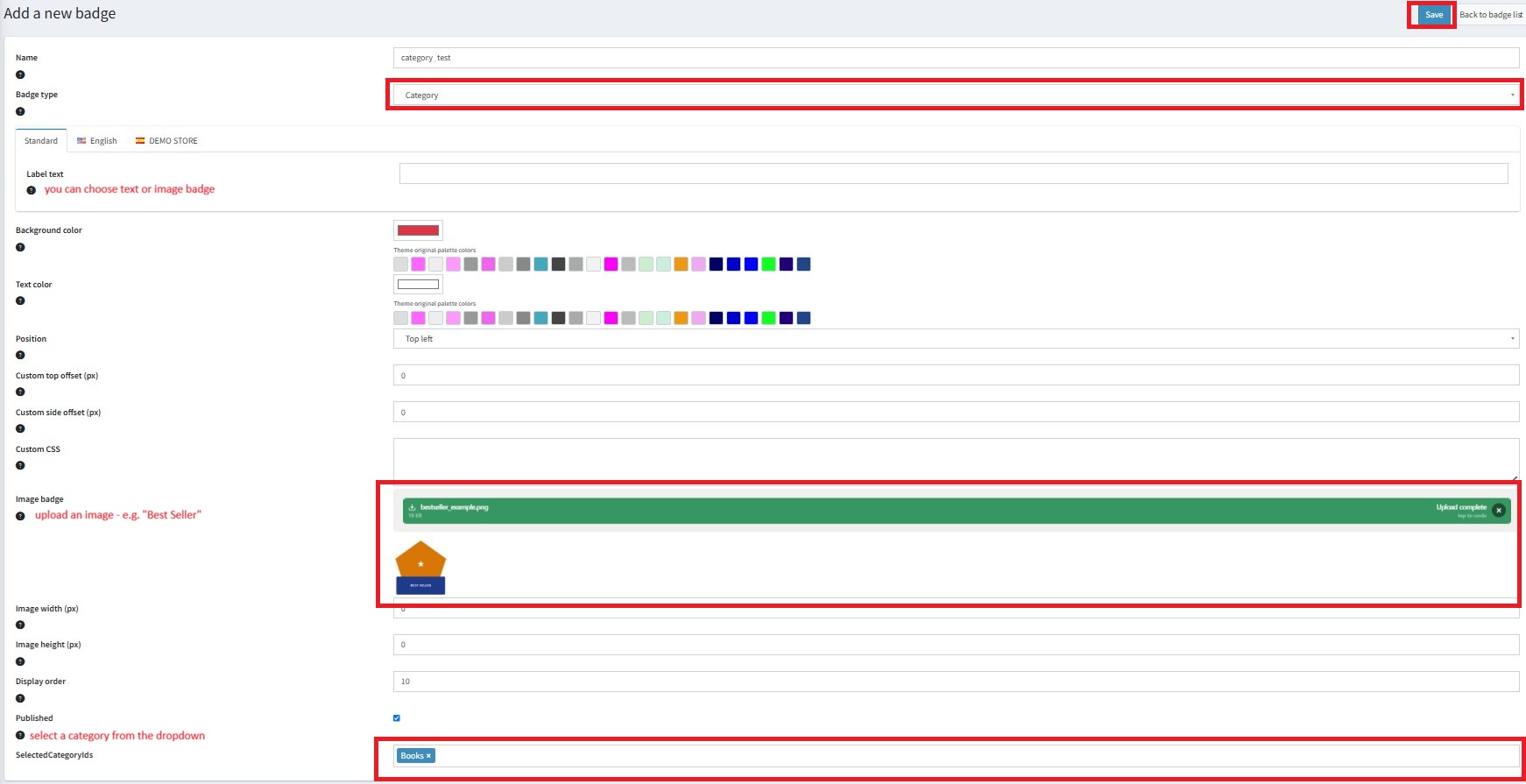

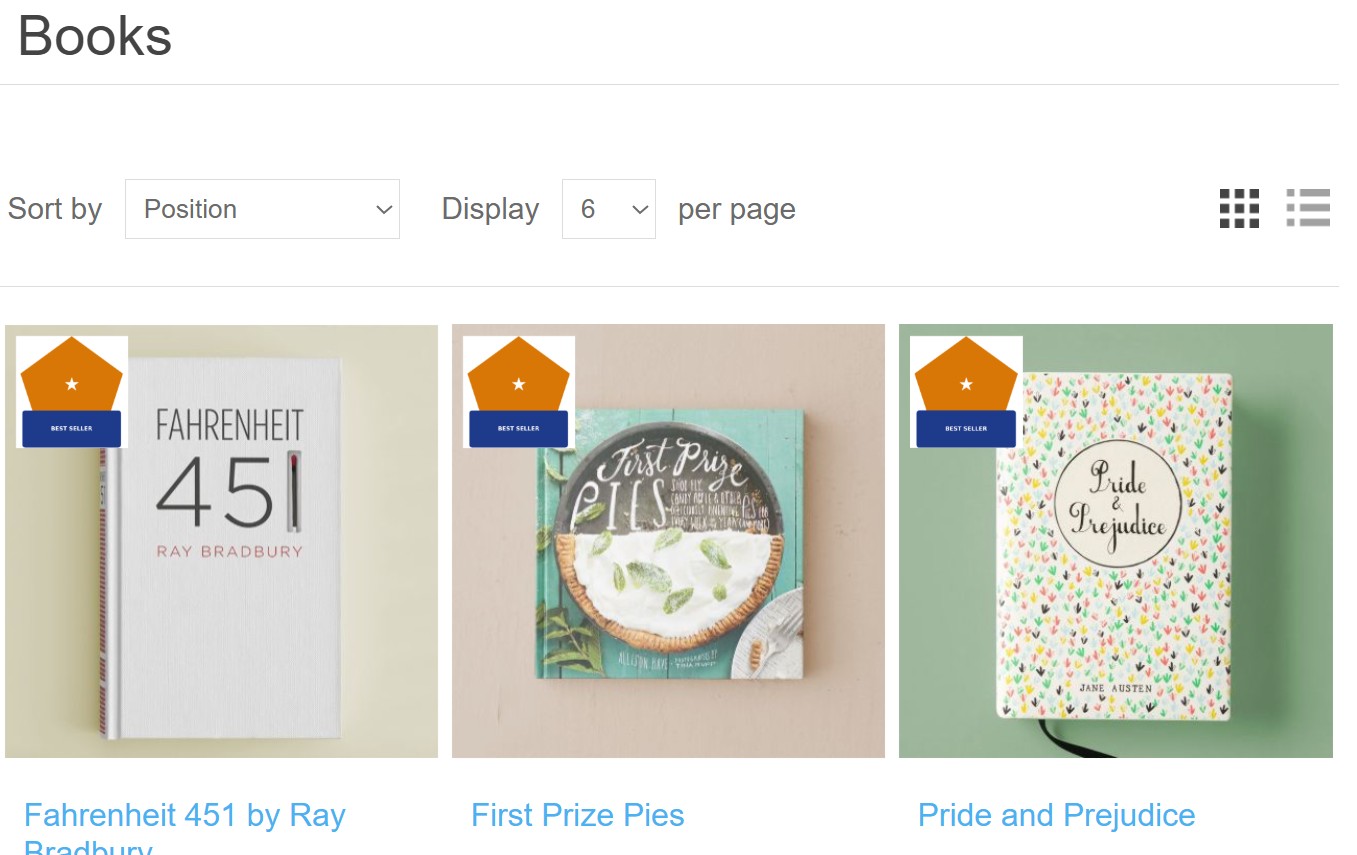

Category

Automatic. The badge appears on all products in the selected categories.

1. Make sure the product has a category

   The product must belong to a category (Catalog → Categories).

2. Assign categories to the badge

   In the badge's Selected categories field, choose one or more categories and save.

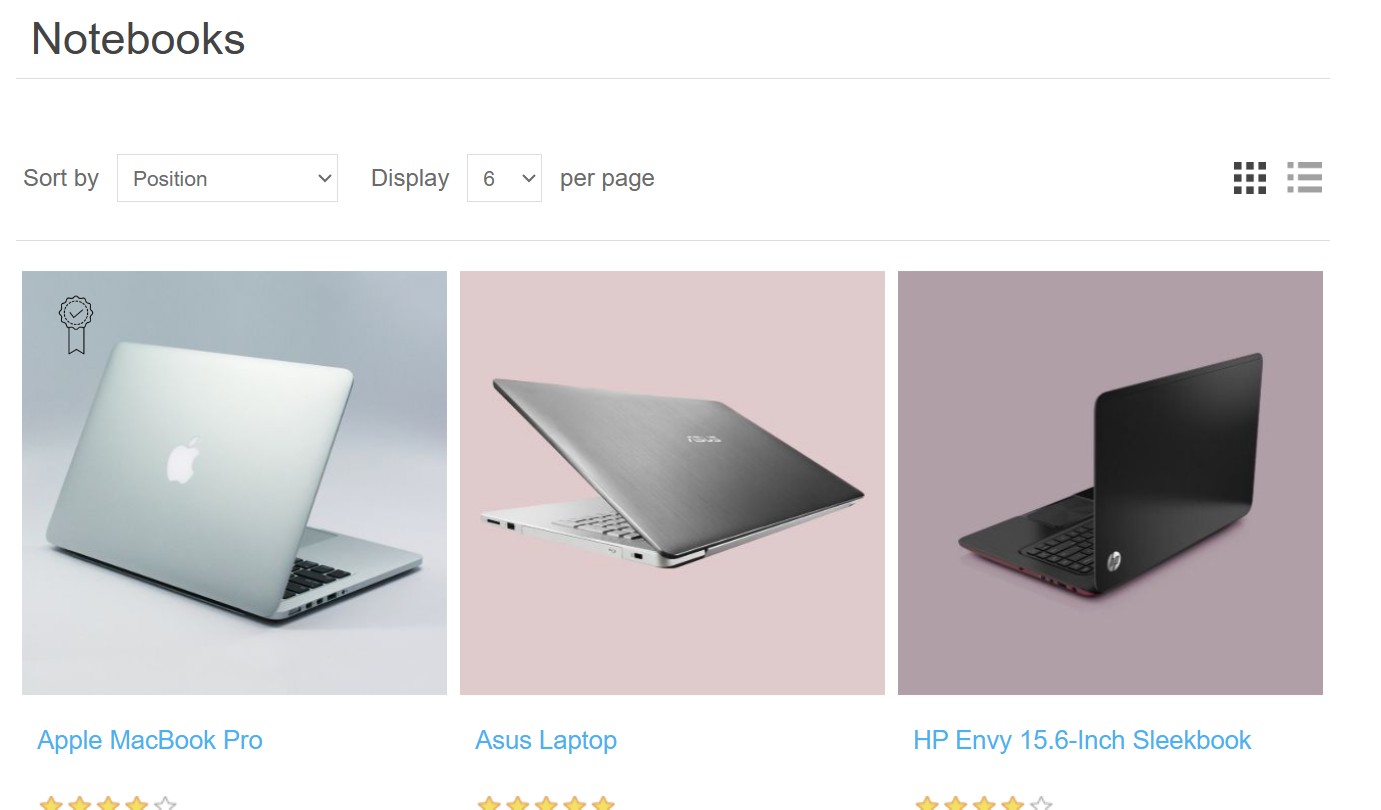

Manufacturer (brand)

Automatic. The badge appears on all products of the selected manufacturers.

1. Set the product's manufacturer

   Edit the product, go to the Manufacturers section, add the manufacturer and Save.

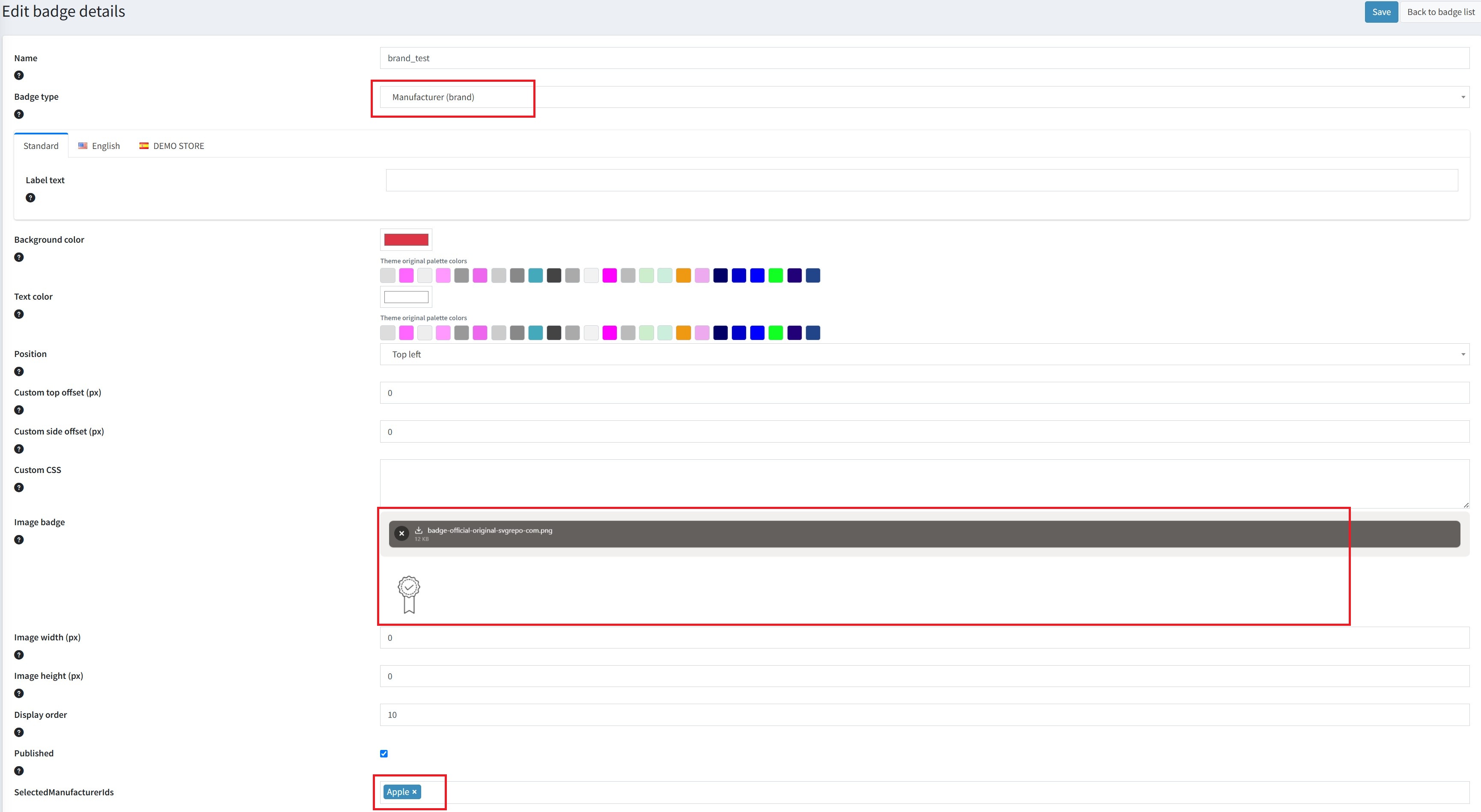

2. Assign manufacturers to the badge

   In the badge's Selected manufacturers field, choose one or more manufacturers and save.

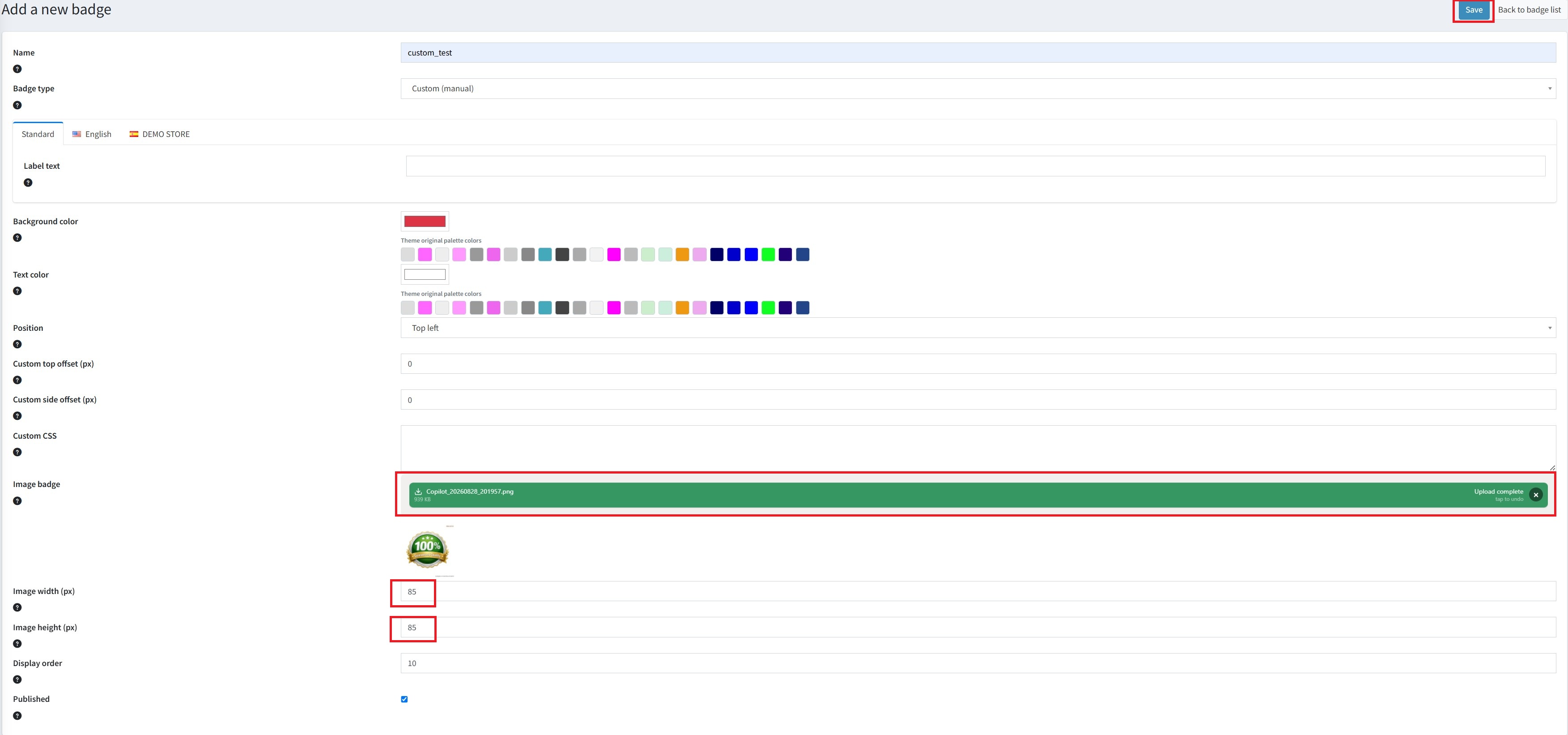

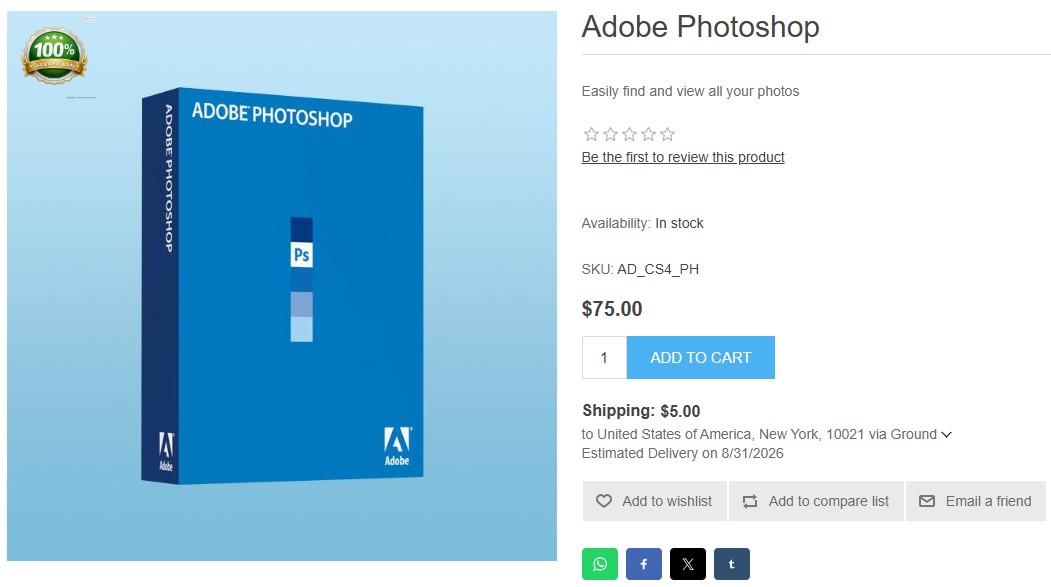

Custom (manual)

Manual. The badge appears only on products you assign it to.

1. Create the badge

   Add a badge of type Custom and publish it.

2. Assign per product

   Edit a product, open the Product Badges tab, tick the custom badge and Save (save the tab, then save the product).

3. Or assign in bulk

   On the product list, select several products, press Assign badge, choose the badge and confirm.

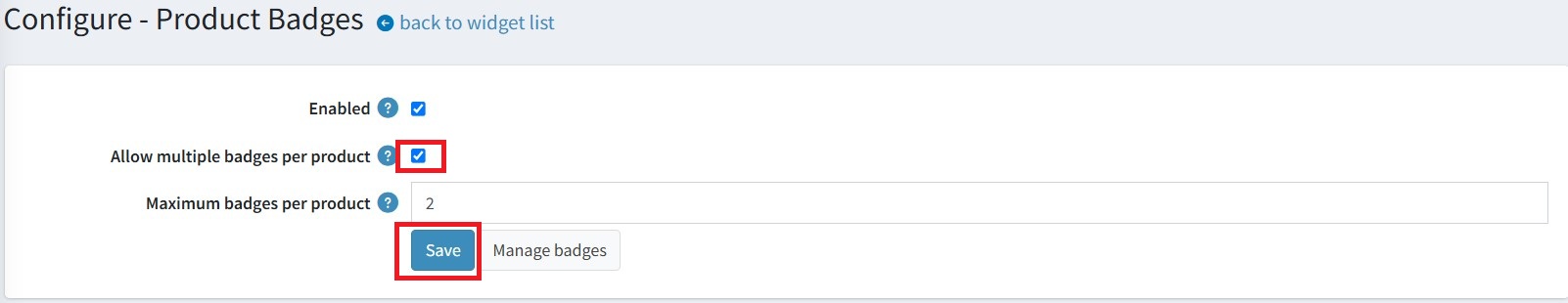

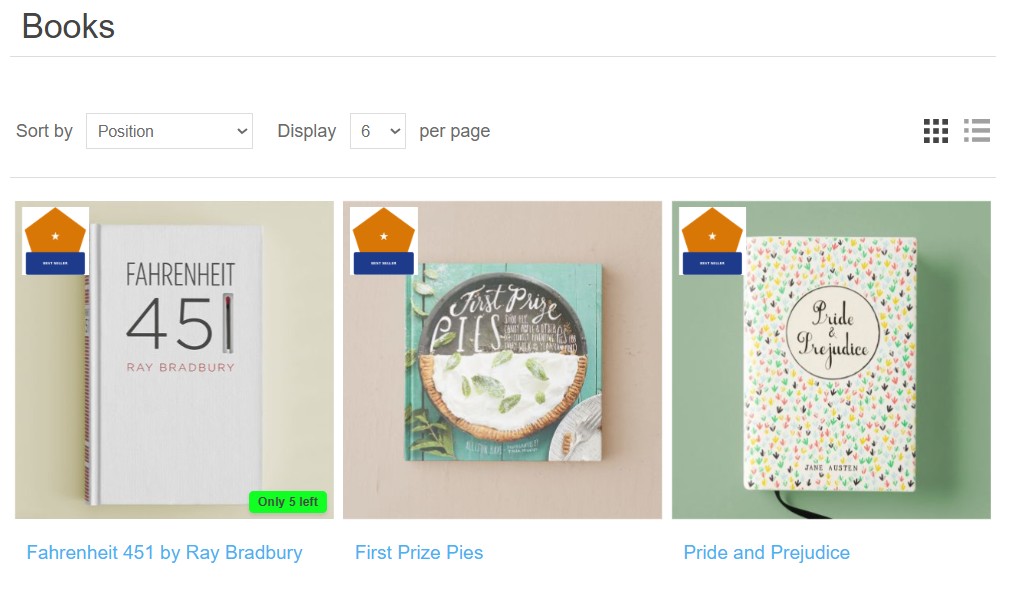

Multiple badges per product

You can show more than one badge on the same product. In the plugin configuration, enable Allow multiple badges and set Max badges per product.

Important notes

Configuration options

Option	Description
Name	Internal name shown in the admin list.
Badge type	Determines the rule used to show the badge (see above).
Label text	The text shown on the badge. Ignored for Discount and Low stock — those generate the text automatically.
Background color / Text color	Colors for text badges.
Image badge	Upload an image to render the badge as an image instead of text.
Position	Which corner of the product image the badge appears in.
Display order	Lower value = higher priority when multiple badges match.
Published	Unpublished badges are never displayed.

Troubleshooting
